Excavator

SH75X-6A

SH75X-6A

Operating weight
7,880~8,050kg
Bucket capacity(ISO heaped)
0.11㎥～0.34㎥
Engine Rated Output
40.0 kW/2,000 min-1
Max digging depth
4,130~4,630mm
Product Brochure
Contact
SH75XU-6A

SH75XU-6A

Operating weight
8,260~8,410kg
Bucket capacity(ISO heaped)
0.11~0.34 ㎥
Engine Rated Output
40.0 kW/2,000 min-1
Max digging depth
4,250~4,600mm
Product Brochure
Contact
SH80BS-6A

SH80BS-6A

Operating weight
8,570~8,730kg
Bucket capacity(ISO heaped)
0.11~0.34 ㎥
Engine Rated Output
40.0 kW/2,000 min-1
Max digging depth
4,180~4,670mm
Product Brochure
Contact
SH130-6/SH130LC-6

SH130-6/SH130LC-6

Operating weight
12,400~13,900 kg
Bucket capacity(ISO heaped)
0.24~0.65 ㎥
Engine Rated Output
70.9 kW (96.4 PS) / 2,000 min-1
Max digging depth
5,150~6,050mm
Product Brochure
Contact
SH145X-6

SH145X-6

Operating weight
14,500~15,000kg
Bucket capacity(ISO heaped)
0.24~0.65 ㎥
Engine Rated Output
70.9 kW/2,000 min-1
Max digging depth
5,110~6,010mm
Product Brochure
Contact
SH145XU-6

SH145XU-6

Operating weight
15,300~15,800 kg
Bucket capacity(ISO heaped)
0.30~0.45㎥
Engine Rated Output
70.9 kW/2,000 min-1
Max digging depth
4,910~5,210mm
Product Brochure
Contact
SH180LC-6

SH180LC-6

Operating weight
17,200~17,900 kg
Bucket capacity(ISO heaped)
0.55~0.8 m3
Engine Rated Output
92 kW (125 PS)/2,200 min-1
Max digging depth
5,660~6,490mm
Product Brochure
Contact
SH210-6/SH210LC-6

SH210-6/SH210LC-6

Operating weight
20,100~20,400kg
Bucket capacity(ISO heaped)
0.50~1.10 m3
Engine Rated Output
117.3 kW (159.5 PS)/1 800 min-1
Max digging depth
6,110~6,650mm
Product Brochure
Contact
SH235X-6

SH235X-6

Operating weight
25,100~25,600 kg
Bucket capacity(ISO heaped)
0.50~1.10 ㎥
Engine Rated Output
117.3 kW/1,800 min-1
Max digging depth
6,120~6,650mm
Product Brochure
Contact
SH250-6

SH250-6

Operating weight
24,800~25,400 kg
Bucket capacity(ISO heaped)
0.8~1.3 ㎥
Engine Rated Output
132.1 kW/2,000 min-1
Max digging depth
6,400~7,420mm
Product Brochure
Contact
SH300-6

SH300-6

Operating weight
29,300~31,300 kg
Bucket capacity(ISO heaped)
1.0~1.3 ㎥
Engine Rated Output
202 kW/2 000 min-1
Max digging depth
6,570~7,580mm
Product Brochure
Contact
SH330-6/SH350LC-6/SH360HD-6/SH370LHD-6

SH330-6/SH350LC-6/SH360HD-6/SH370LHD-6

Operating weight
33,900~37,500kg
Bucket capacity(ISO heaped)
1.4~1.9 ㎥
Engine Rated Output
200.0 kW/ 2,000 min-1
Max digging depth
6,730~7,340mm
Product Brochure
Contact
SH470HD-6/SH490LHD-6/SH490LHD-6 MASS/SH510LHD-6/SH510LHD-6 MASS

SH470HD-6/SH490LHD-6/SH490LHD-6 MASS/SH510LHD-6/SH510LHD-6 MASS

Operating weight
48,000~52,100kg
Bucket capacity(ISO heaped)
2.0~3.1 m3
Engine Rated Output
270 kW/2,000 min -1
Max digging depth
6,450~7,750mm
Product Brochure
Contact
SH700LHD-5B/SH700LHD-5B MASS

SH700LHD-5B/SH700LHD-5B MASS

Operating weight
68,100~70,500kg
Bucket capacity(ISO heaped)
2.9~4.2 ㎥
Engine Rated Output
345 kW(469PS)/1,800 min -1
Max digging depth
7,140~9,850mm
Product Brochure
Contact
SH800LHD-5B/SH800LHD-5B MASS

SH800LHD-5B/SH800LHD-5B MASS

Operating weight
80,100~81,400kg
Bucket capacity(ISO heaped)
3.3~5.0 ㎥
Engine Rated Output
377 kW(513PS)/1,800 min -1
Max digging depth
7,030mm~10,560mm
Product Brochure
Contact

Asphalt Paver

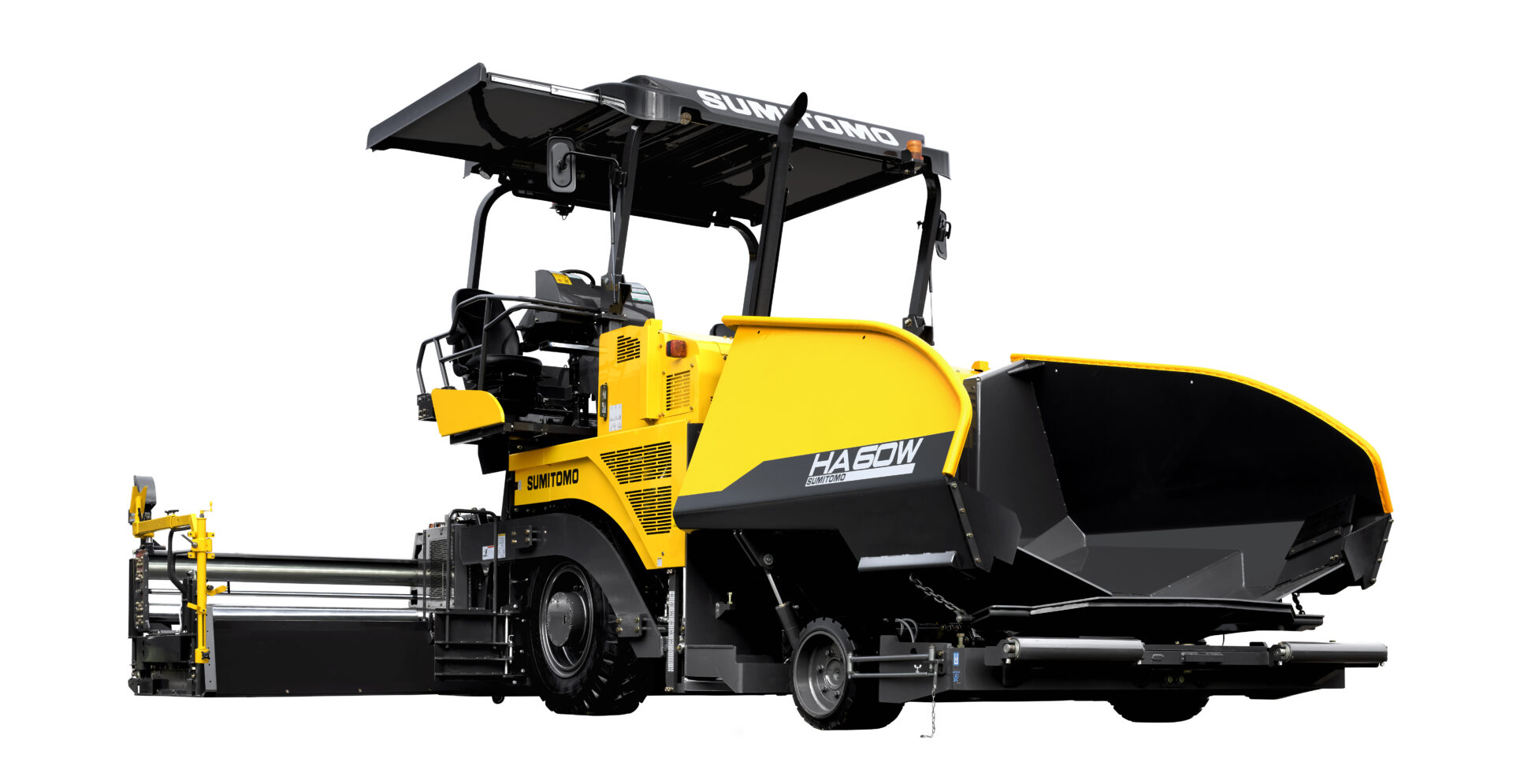

HA60W-8

HA60W-8

Exhaust emission standards
Tier3
Standard variable paving width
2.3-6.0m
Maximum paving width
6.0m
Operating weight
14.95t
Conveyor capacity/ISO15878
450t/ｈ
Product Brochure
Contact

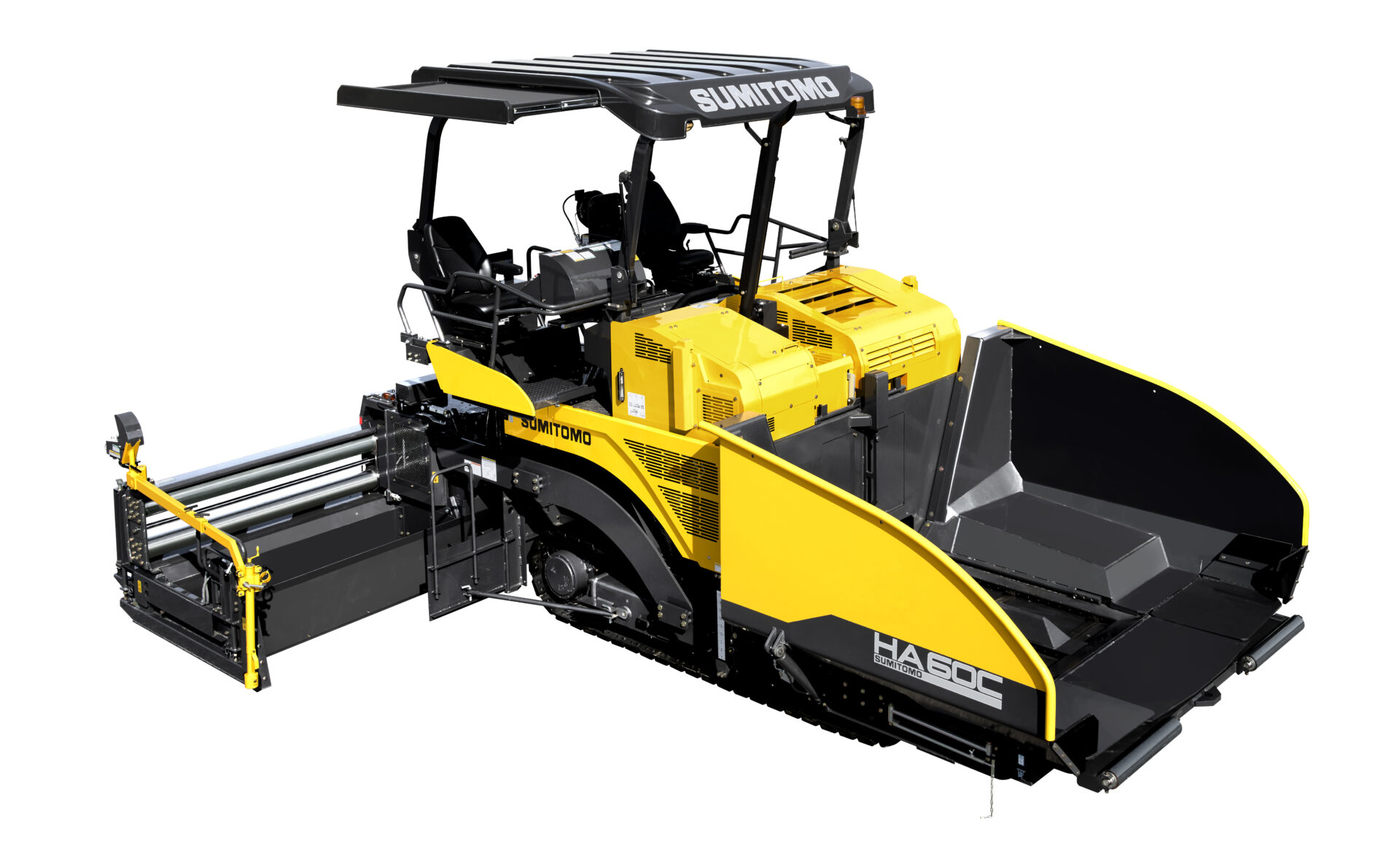

HA60C-8

HA60C-8

Exhaust emission standards
Tier3
Standard variable paving width
2.3-6.0m
Maximum paving width
6.0m
Operating weight
14.69t
Conveyor capacity/ISO15878
450t/ｈ
Product Brochure
Contact

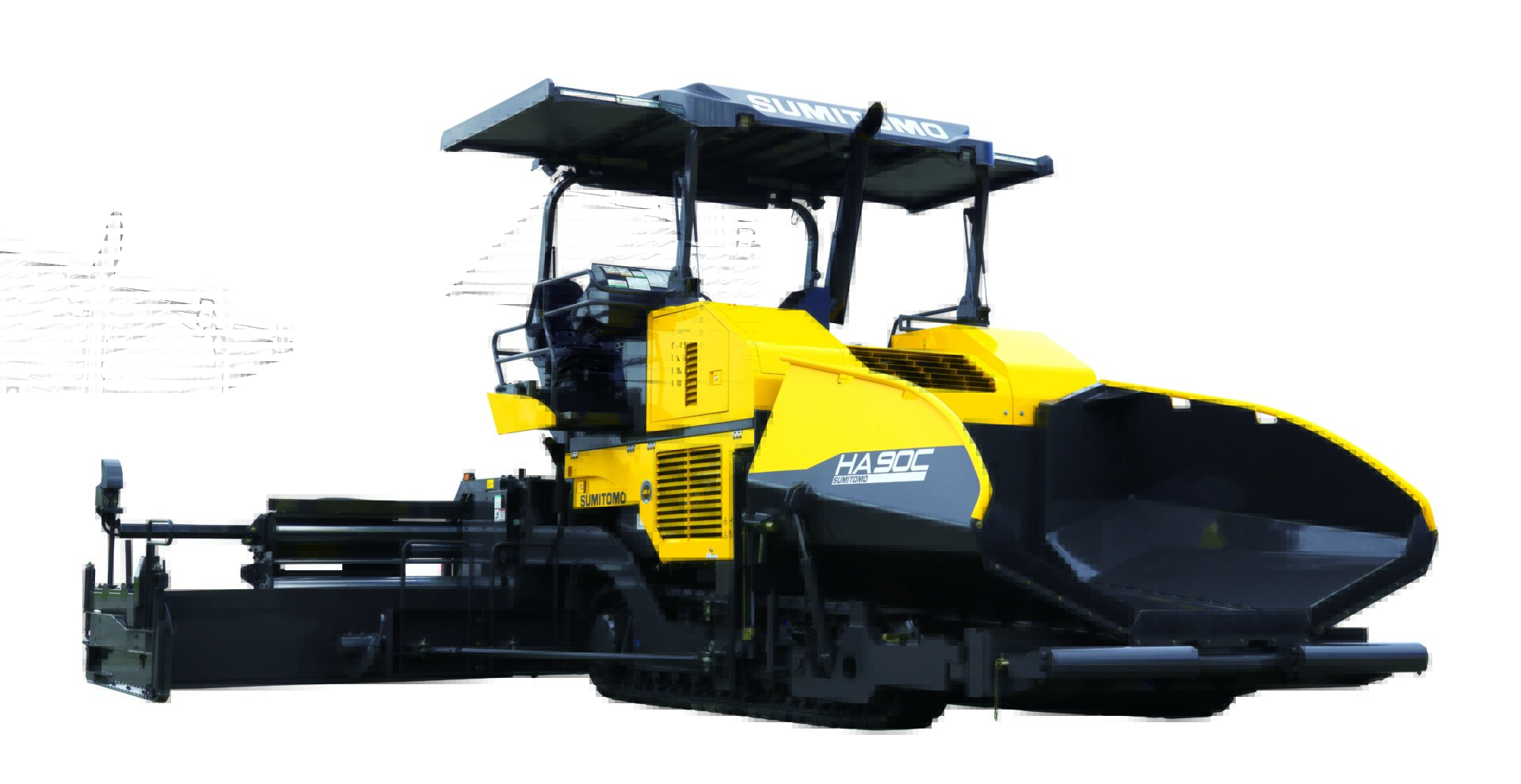

HA90C-2

HA90C-2

Exhaust emission standards
Tier3/GB3
Standard variable paving width
2.8-7.5m
Maximum paving width
9.0m
Operating weight
22.6t（Transportation）/ 24.2t（With EXT.for 9m paving)
Conveyor capacity/ISO15878
700t/h
Product Brochure
Contact

Previous Models

Models Data
SH130-5/SH130LC-5
Product Brochure
SH160-5
Product Brochure
SH210-5/SH210LC-5
Product Brochure
SH240-5
Product Brochure
SH300-5
Product Brochure
SH330-5/SH330LC-5/SH350HD-5/SH350LHD-5
Product Brochure
SH460HD-5/SH480LHD-5/SH480LHD-5 MASS/SH500LHD-5/SH500LHD-5 MASS
Product Brochure
SH800LHD-5/SH800LHD-5 MASS
Product Brochure
