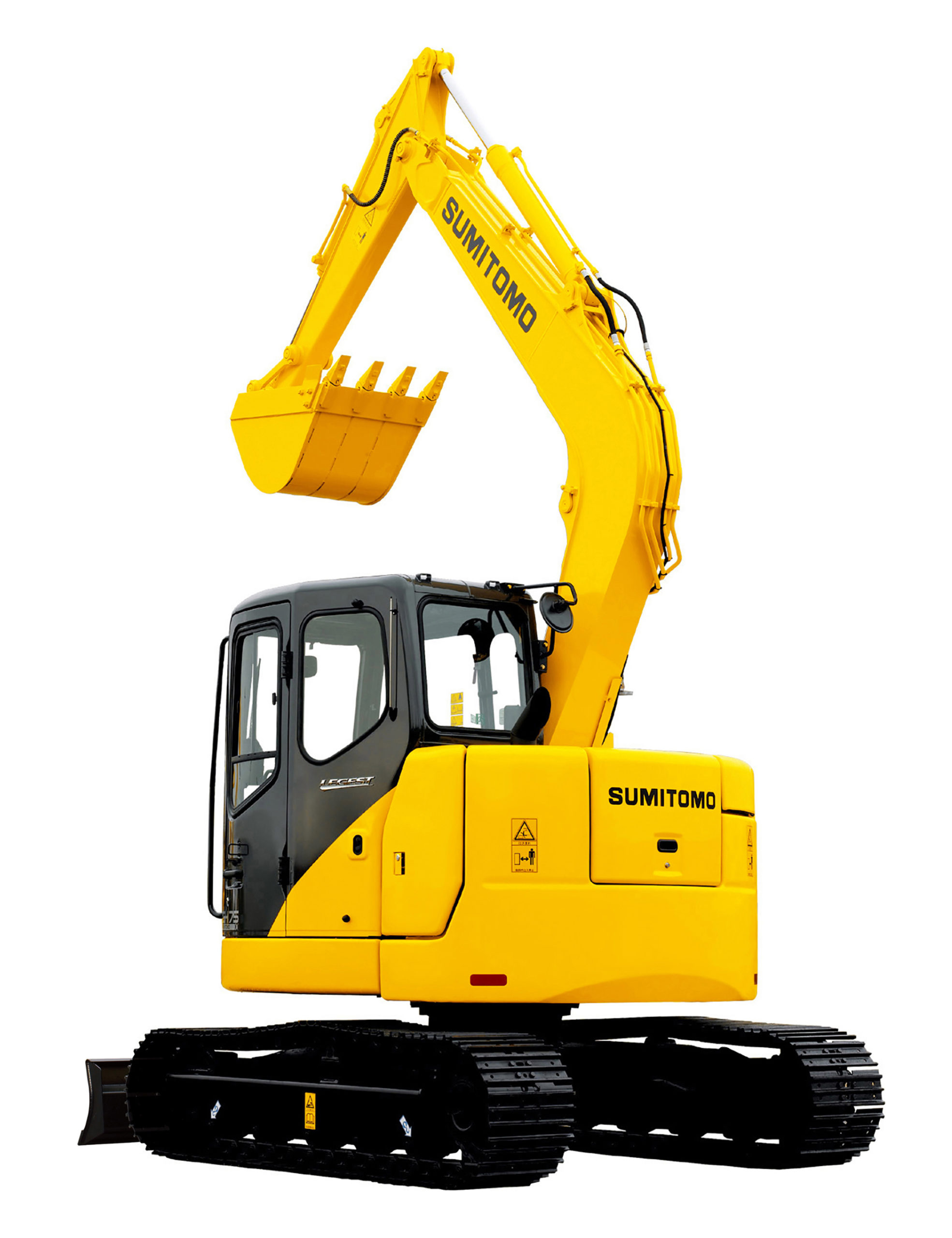

Excavator SH75X-3B

SH75X-3B
  • 7920kg~8030㎏ Operating weight
  • 0.11㎥~0.34㎥ Bucket capacity
    (ISO heaped)
  • 40.0kw/2000min-1 Engine Rated Output
  • 4140mm~4540mm Max digging depth

Features

Sumitomo’s machine is equipped with a new generation engine and hydraulics system to help customers improve the perfomance of the machine while reducing environmental impact and running costs.

Base

Arm length
1.71 m
Bucket capacity (ISO heaped)
0.28 m3
Std. Operating weight
7920 kg

Engine

Make & model
ISUZU AU-4LE2X
Rated output
40.0 kw/2000 min -1
Displacement
2179 ml (cc)

Hydraulic System

Main pump
2 variable displacement axial piston pumps
Max pressure
29.4 Mpa
Travel motor
Variable displacement axial piston motor
Parking brake type
Mechanical disc brake
Swing motor
Fixed displacement axial piston motor

Performance

Travel speed
5.1/v3.3 km/h
Drawbar pull
59 kN
Grade ability
70%<35°>
Ground pressure
35 kPa
Swing speed
9.5 min-1
Bucket digging force
57 kN
Arm digging force
38 kN

Others

Fuel tank
100 liter
Hydraulic fluid tank
97 liter
