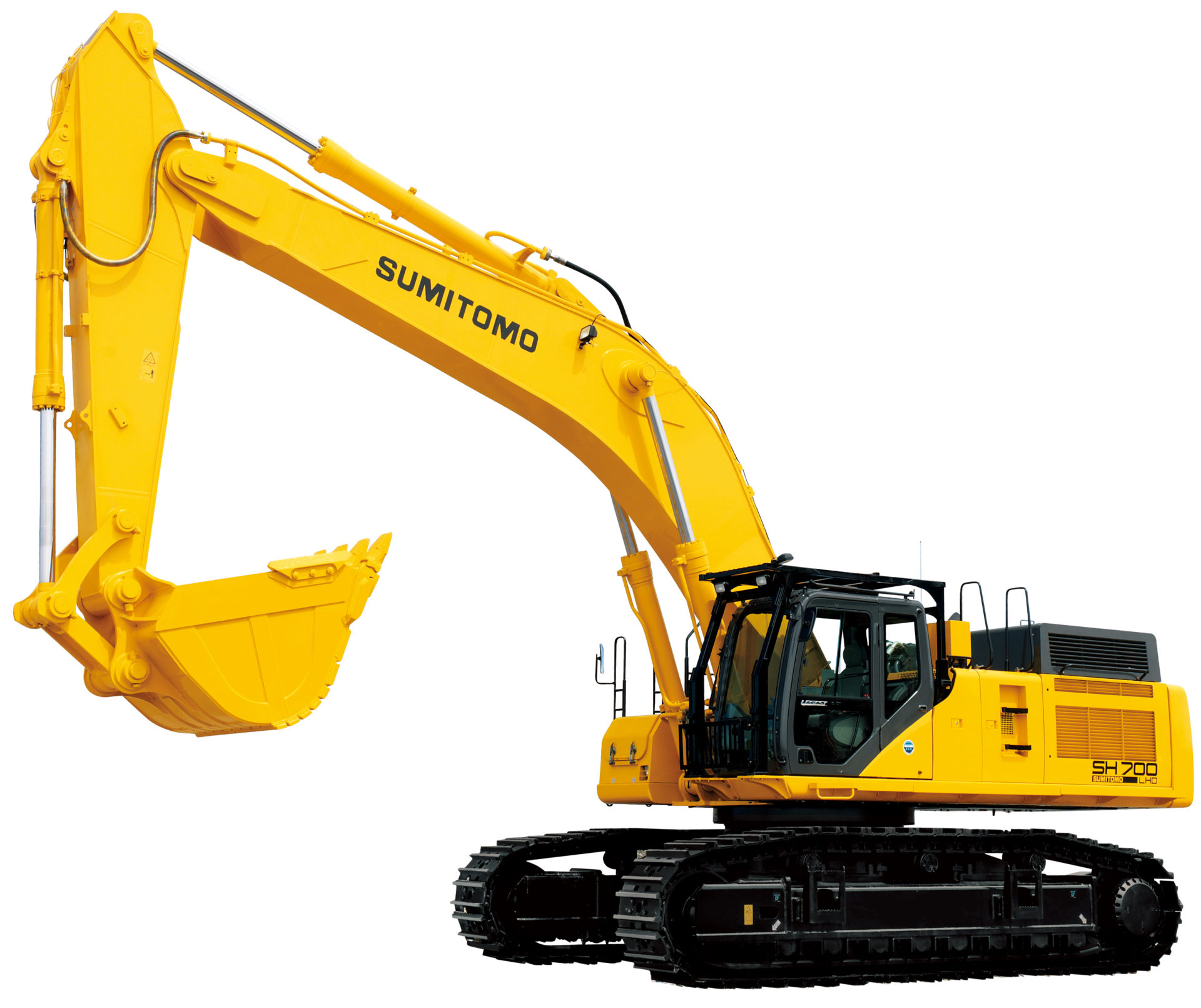

Excavator SH700LHD-5/SH700LHD-5 MASS
- 68,100~68,200kg Operating weight
-
2.9~4.0 ㎥
Bucket capacity
(ISO heaped) - 345 kW(469PS)/1,800 min -1 Engine Rated Output
- 7180mm-9850mm Max digging depth
Features
Sumitomo's machine is equipped with a new generation engine and hydraulics system to help customers improve the perfomance of the machine while reducing environmental impact and running costs.
Base
- Boom length
-
SH700LHD-57.7 mSH700LHD-5 Mass6.58 m
- Arm length
-
SH700LHD-53.55 mSH700LHD-5 Mass3.0 m
- Bucket capacity (ISO heaped)
-
SH700LHD-52.9 m3SH700LHD-5 Mass4.0 m3
- Operating weight
-
SH700LHD-568100 kgSH700LHD-5 Mass68200 kg
Engine
- Make & model
- ISUZU AH-6WG1XYSS
- Rated output
- 345 kW(469 PS)/1 800 min-1
- Displacement
- 15700 ml(cc)
Hydraulic System
- Main pump
- 2 variable displacement axial piston pumps with regulating system
- Max pressure
- 31.4 MPa
- /with auto power up
- 34.3 MPa
- Travel motor
- Variable displacement axial piston motor
- Parking brake type
- Mechanical disc brake
- Swing motor
- Fixed displacement axial piston motor
Performance
- Travel speed
- 4.1/3.0 km/h
- Traction force
- 462 kN
- Grade ability
- 70%<35°>
- Ground pressure
-
SH700LHD-5100 kPaSH700LHD-5 Mass101 kPa
- Swing speed
- 6.5 min-1
- Bucket
-
SH700LHD-5317 kNSH700LHD-5 Mass365 kN
- Arm
-
SH700LHD-5245 kNSH700LHD-5 Mass259 kN
- Fuel tank
- 900 ltr
- Hydraulic fluid tank
- 310 ltr
