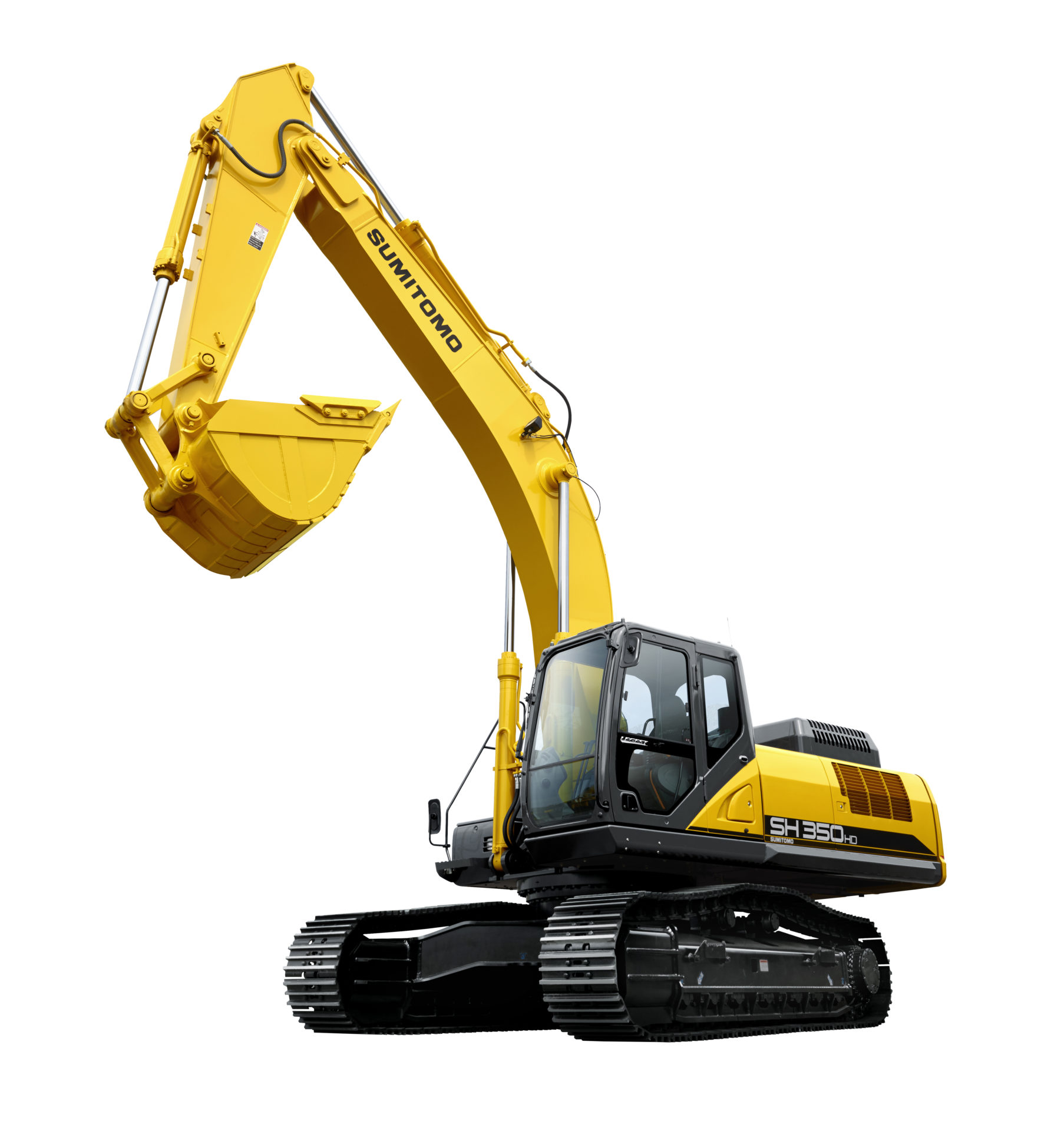

Excavator SH350LC-6/SH370LHD-6

SH350LC-6/SH370LHD-6
  • 34,600~37,500kg Operating weight
  • 1.4~1.6 ㎥ Bucket capacity
    (ISO heaped)
  • 200.0 kW/ 2,000 min-1 Engine Rated Output
  • 7,340mm Max digging depth

Features

Sumitomo's machine is equipped with a new generation engine and hydraulics system to help customers improve the perfomance of the machine while reducing environmental impact and running costs.

Base

Boom length
SH350LC-66.45 m
SH370LHD-66.45 m (HD type)
Arm length
SH350LC-63.25 m
SH370LHD-63.25 m (HD type)
Bucket capacity (ISO heaped)
SH350LC-61.4 ㎥
SH370LHD-61.6 ㎥ (HD type)
Std. operating weight
SH350LC-634,600 kg
SH370LHD-636,600 kg

Engine

Make & model
ISUZU GH-6HK1X
Rated output
200.0 kW/2,000 min -1
Displacement
7.79 ltr

Hydraulic System

Main pump
2 variable displacement axial piston pumps with regulating system
Max pressure
34.3 MPa
/with auto power boost
37.3 MPa
Travel motor
Variable displacement axial piston motor
Parking brake type
Mechanical disc brake
Swing motor
Fixed displacement axial piston motor

Performance

Travel speed
5.4/3.4 km/h
Drawbar pull
SH350LC-6264 kN
SH370LHD-6263 kN
Grade ability
70% <35°>
Ground pressure
SH350LC-665 kPa
SH370LHD-668 kPa
Swing speed
10.0 min-1
Bucket digging force
232 kN
/with power boost
252 kN
Arm digging force
196 kN
/with power boost
213 kN

Others

Fuel tank
580 ltr
Hydraulic fluid tank
175 ltr
